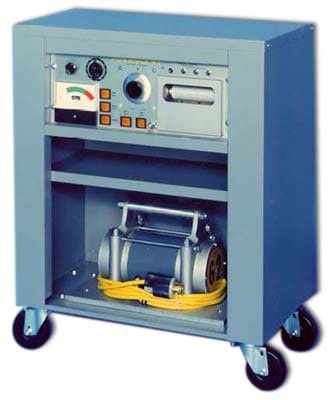

'FORMULA 62' VIBRATORY STRESS RELIEF EQUIPMENT, MODEL C


GURU NANAK STRESS RELIEVERS PVT. LTD. are the Sole Authorised Distributors in India for 'Formula 62' Vibratory Stress Relief Equipment, Model C , manufactured by Stress Relief Engineering, California, USA, and marketed worldwide by Dreyfus Global Trade, LLC, USA.
‘FORMULA 62’ EQUIPMENT, USA, IS USEFUL FOR THE VIBRATORY STRESS RELIEVING OF:

  1. Heavy Fabrications
  2. Fabricated Structures
  3. Weld Repaired Jobs
  4. Shafts, Gears, Pinions
  5. Castings
  6. Stainless Steel
  7. Aluminium
  8. Stresses caused by machining, milling, grinding, punching, broaching, stamping, boring, planning, cutting, forging

Formula 62' Vibratory Stress Relieving technology is useful in Industries like:

  1. Aerospace
  2. Automotive
  3. Cement
  4. Casting
  5. Defense
  6. Machine Building and Machining
  7. Mining
  8. Mold making
  9. Power Generation
  10. Railways
  11. Ship Building
  12. Sugar
  13. Welding and Fabricators

Advantages
  1. Process is more technically sound
  2. Working cost works out to much less as compared to thermal stress relieving
  3. Ease of operation – as and when required and as many times as required
  4. Process is very fast (a job of 2000 kgs would require just about 30 mins)
  5. Environmentally friendly (no chemicals used, gases formed or heat produced)
  6. Portable – machine can be easily taken to the job (no hassles of transporting the job to the furnace site or unnecessary material handling)
  7. Process is very clean (no discolouration, slag or scale formation)
  8. Single job up to 150 tons (irrespective of shape, size, volume, material) can be stress relieved by this machine
  9. Useful for ferrous and non-ferrous materials
  10. For a wide variety of applications – Fabrications, Castings, Machined components, Shafts, Gears, Weld repaired jobs and stresses caused by machining, milling, grinding, punching, broaching, stamping, boring, planning, cutting, forging
  11. Does not disturb the metallurgical properties like hardness or tensile strength
Specifications
  1. Modes of operation: (3) manual, manual resonant, automatic
  2. Strip chart recorder
  3. Variable frequency control
  4. Analog resonance meter
  5. Manual time indicator
  6. Resettable circuit breaker protection
  7. Cabinet size (inches) 16D x 26L x 33H (cm) 40.6D x 66L x 84H
  8. Approx. Shipping Weight: 168 lbs. (80 Kgs.) approximately
  9. Voltage: 220 – 230 V, 50/60 Hz., 1 phase
  10. Rated Current: 7 A; Rated Power: 750 W
Additional Information
Product Code Model C
Min. Order Quantity One Set(s)
Port Anywhere in India
Payment Terms T/T, NEFT, RTGS
Delivery Time As per mutually agreed upon
Packaging Details As received from the USA Manufacturer
Warranty International Three (3) Years Limited Warranty
